How to Simulate Server Heat Loads Before IT Equipment Is Installed

Views: 0     Author: Site Editor     Publish Time: 2026-09-29      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Deploying enterprise IT equipment into a newly constructed data center carries operational risk. Facility operators cannot rely solely on theoretical HVAC design specifications to guarantee environmental stability. Mechanical completion and basic functional testing do not ensure the facility handles peak thermal densities. A gap exists between a statically cooled room and a fully operational data hall under maximum compute stress. You must bridge this gap before live servers enter the environment.

The definitive method to validate Computer Room Air Conditioning (CRAC) units, containment systems, and power distribution under full operational stress is server heat load simulation. This process stresses the mechanical and electrical infrastructure exactly as live hardware would. It reveals hidden airflow bypasses, localized hot spots, and cooling inefficiencies that theoretical models miss. By replicating the exact thermal footprint of your expected IT deployment, you protect hardware investments and ensure day-one operational readiness.

  • Simulating IT heat loads prevents catastrophic thermal events by identifying airflow bypass, hot spots, and cooling inefficiencies prior to day-one operations.

  • Rack-mounted loads banks provide the most accurate representation of server Delta-T and CFM (Cubic Feet per Minute) airflow compared to bulk floor-standing units.

  • Effective simulation requires testing normal operations as well as failure scenarios (e.g., cooling unit failure, power transition to generator) during the Integrated Systems Test (IST).

  • Selecting the right simulation strategy requires aligning the test equipment's electrical, thermal, and software-control characteristics with the facility's specific high-density or standard-density design criteria.

Value of Thermal Testing Before Server Deployment

Validating a data center requires strict adherence to established engineering standards. You must define clear success criteria before introducing any test equipment into the white space. Success typically means maintaining ASHRAE TC 9.9 compliance across all server inlets under 100% simulated utilization. The recommended envelope dictates that inlet temperatures remain between 64.4°F and 80.6°F (18°C to 27°C), while humidity levels stay within strict dew point parameters. Achieving these metrics during a full-scale test proves that the mechanical plant operates exactly as the engineers intended.

Follow ASHRAE Commissioning Stages

Standard data center commissioning follows a rigorous five-level process. Thermal simulation plays a mandatory role in the later stages of this framework. During Level 1 through Level 3, contractors focus on factory testing, site acceptance, and pre-functional component checks. Level 4 (Functional Performance Testing) is where individual cooling units are stressed to verify their standalone capacity. Level 5 (Integrated Systems Testing) requires comprehensive simulation. At this stage, you apply massive thermal stress to the entire data hall simultaneously. This verifies that chillers, pumps, cooling towers, and CRAC units operate cohesively under full load.

Cost Comparison: Cooling Failure vs. Thermal Testing

Skipping thermal validation exposes the facility to severe operational hazards. The expense of deploying temporary test equipment is negligible compared to the fallout of a thermal shutdown. Unverified cooling infrastructure leads to hardware degradation, unexpected server throttling, and severe Service Level Agreement (SLA) breaches with tenants. When cooling fails, temperatures rise at an alarming rate, often causing irreversible damage to sensitive microprocessors and storage arrays. Rigorous pre-deployment testing acts as an insurance policy against these outcomes, ensuring that the facility can handle the exact heat rejection requirements of the incoming IT gear.

Validating Redundancy and Tier Certification

Modern data centers are built with strict redundancy requirements to ensure continuous uptime. Stakeholders, colocation tenants, and certification bodies like the Uptime Institute demand proof of N+1, 2N, or 2N+1 cooling redundancy. You cannot prove redundancy with empty server racks. You must apply a full thermal load and intentionally shut down primary cooling components. This demonstrates that the backup systems can seamlessly absorb the thermal load without allowing rack inlet temperatures to spike out of compliance. It proves the mechanical topology works in practice, not just on a single-line diagram.

Main Methods for IT Heat Load Simulation

Different testing methodologies yield entirely different sets of data. Choosing the right equipment dictates the accuracy of your commissioning process. You must match the physical and thermal characteristics of the test units to the expected IT hardware to gather meaningful telemetry.

Rack-Mounted Loads Banks

These specialized units mimic the exact form factor of actual enterprise servers. They are installed directly into the server cabinets, occupying standard RU spaces, typically ranging from 4U to 7U in height. A high-quality rack-mounted Loads bank replicates the precise heat dissipation and front-to-back airflow dynamics of live IT equipment. They pull cold air from the front aisle, heat it over internal resistive elements, and exhaust it into the hot aisle. This makes them highly effective for validating rack-level containment systems and identifying localized microclimate issues that larger units miss. They expose leaky blanking panels, poorly sealed floor tiles, and inadequate under-floor static pressure.

Floor-Standing Loads Banks

Floor-standing units are massive, high-capacity heaters used to apply bulk thermal stress to a room. Ranging from 50kW to over 300kW per unit, they are highly effective for testing overall room cooling capacity and validating central chiller plant performance. Commissioning agents use them to ensure the mechanical plant can produce enough total cooling tonnage. However, floor units have distinct limitations. They sit in the aisles or open white space, meaning they do not accurately simulate rack-level airflow dynamics. They cannot replicate the specific temperature differential (Delta-T) of densely packed server cabinets, making them unsuitable for testing hot or cold aisle containment integrity.

Smart and Networked Loads Banks

The commissioning industry has evolved far beyond manual-switch heaters. Modern testing relies on software-controlled, networked simulation units. These smart devices allow commissioning agents to centrally control and automate load stepping across the entire data hall using Modbus TCP/IP or proprietary control protocols. You can synchronize thousands of test units from a single laptop. This ensures precise data aggregation and perfectly timed load variations, mapping exactly how the mechanical systems respond to sudden spikes in compute demand. Networked units eliminate the need for technicians to manually flip breakers on hundreds of individual heaters, drastically reducing test setup time and human error.

Alternative and Legacy Methods

Outdated methods like heater mats, standard industrial space heaters, or load banks without integrated fans fail to meet modern commissioning standards. They generate static heat without simulating the directional airflow required to test containment systems. They lack the high-velocity fans necessary to mimic server exhaust. Furthermore, these legacy methods introduce severe safety risks, including electrical fires and tripped breakers, rendering them entirely unsuitable for enterprise data center validation. Relying on these methods provides a false sense of security and yields useless thermal data.

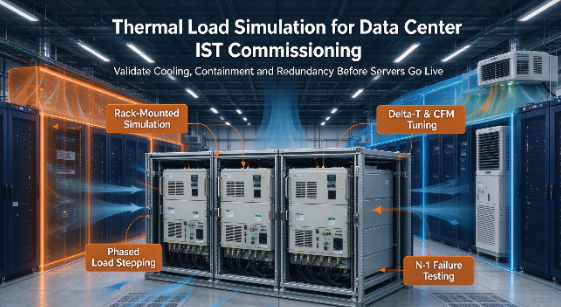

Data center server heat load simulation testing

Key Factors to Select Thermal Simulation Equipment

Selecting the proper test equipment requires a deep understanding of your facility's mechanical design. You must evaluate the thermal, electrical, and physical characteristics of the simulation units to ensure they align with your deployment strategy.

Matching Server Delta-T and Airflow (CFM)

The temperature differential between the cold air intake and the hot air exhaust is known as Delta-T. Matching the Delta-T of the expected IT hardware is highly important. The relationship between heat load (kW), airflow (CFM), and Delta-T is fixed by physics. If your test equipment moves too much air for a given kW load, the Delta-T will be artificially low, masking potential cooling deficiencies. Advanced simulation units feature variable fan speeds controlled by PID loops. This allows commissioning agents to tune the CFM to match specific server profiles, ensuring the thermal exhaust behaves exactly like live hardware.

Scalability for High-Density and AI Workloads

Data center densities are increasing rapidly. Standard 5kW racks are being replaced by high-density deployments ranging from 20kW to over 100kW per cabinet to support AI and machine learning workloads. Your simulation equipment must scale to meet these extreme densities. Test units can be daisy-chained or configured in dense arrays to simulate these environments. This extreme testing is necessary to validate liquid-to-air heat exchangers, rear-door coolers (RDHx), and the supporting facility water supply (FWS) infrastructure for Direct Liquid Cooling (DLC) loops.

Power Infrastructure Compatibility

Simulation units require massive amounts of electricity to generate heat. You must match the electrical requirements of the test equipment with the facility's installed power infrastructure. Consider the voltage requirements—whether the facility uses 208V, 400V, or 415V—and whether the units require single-phase or three-phase power. Ensure the plugs match the installed Power Distribution Units (PDUs) and receptacles, such as IEC C13, C19, L6-30, or specific IEC 309 configurations. Mismatched electrical connections will halt the commissioning process entirely and require expensive, last-minute adapter procurement.

Buy or Rent the Thermal Test Equipment

Facility operators must decide whether to rent or purchase their testing equipment. Renting equipment makes sense for one-off facility commissioning where the units are only needed for a few weeks. It shifts the burden of storage, maintenance, and calibration to the rental provider. Purchasing a dedicated fleet of test units is highly advantageous for hyperscalers or colocation providers engaged in ongoing, phased modular data center build-outs. Owning the equipment ensures immediate availability for continuous testing cycles and eliminates recurring rental logistics.

Equipment Type

Primary Use Case

Airflow Simulation

Containment Validation

Rack-Mounted Units

Simulating exact server behavior in cabinets

High (Matches server CFM and Delta-T)

Excellent (Tests hot/cold aisle integrity)

Floor-Standing Units

Testing bulk room capacity and chiller plants

Low (Does not mimic rack-level dynamics)

Poor (Generates uncontained bulk heat)

Networked Smart Units

Automated IST and synchronized load stepping

High (Software-controlled variable fan speeds)

Excellent (Provides granular telemetry data)

How to Build the Integrated Systems Test (IST)

The Integrated Systems Test is the final exam for a data center. It requires a meticulously structured script to validate every mechanical and electrical component under maximum stress. You must execute this test with precision to gather accurate baseline data.

Step-by-Step Load Increase Testing

You should never apply a 100% thermal load instantly. The methodology requires incrementally increasing the heat load via automated scripting to observe how the mechanical plant reacts to changing conditions. A standard approach follows a strict sequence:

  1. Establish baseline environmental conditions with all cooling systems active and zero thermal load applied to the white space.

  2. Initiate the first load step at 25% capacity across all networked units, allowing the room's thermal mass to absorb the initial heat.

  3. Hold the load for a specified duration (typically 30 to 60 minutes) to allow CRAH unit Variable Frequency Drives (VFDs) and chilled water valves to stabilize.

  4. Increase the load incrementally to 50%, 75%, and finally 100%, logging Building Management System (BMS) telemetry at each stage to verify stable static pressure and temperature.

Simulating Failure Scenarios (N-1, N-2)

A true IST must validate the facility's response to catastrophic failures. While under full simulated heat load, commissioning agents intentionally fail critical infrastructure. They shut down CRAC units, isolate chillers, or cut utility power to force a generator transition. This verifies automated failover sequences and Automatic Transfer Switch (ATS) operation. It also measures thermal ride-through times, determining exactly how many minutes the facility can maintain safe temperatures without active cooling before the backup systems take over and restore chilled water flow.

Thermal Imaging and Sensor Placement

Data collection during the IST must be comprehensive. Best practices dictate deploying hundreds of temporary temperature and humidity sensors across the cold aisles, hot aisles, and return air plenums. Sensors should be placed at the top, middle, and bottom of the racks to capture vertical temperature gradients. Additionally, commissioning agents utilize infrared thermography to visually map airflow and document hot spots. Thermal imaging cameras quickly identify containment leaks, missing blanking panels, or areas where cold air bypasses the server racks entirely.

Failure Scenario

Component Tested

Expected Outcome

Utility Power Loss

Generators, ATS, UPS

Seamless transition to generator power; cooling restarts within specified ride-through time.

Primary Chiller Trip

Redundant Chiller, Pumps

Standby chiller activates automatically; chilled water loop temperature remains stable.

CRAH Unit Failure (N-1)

Adjacent CRAH Units

Remaining units ramp up VFD fan speeds to compensate for lost airflow and maintain static pressure.

Conclusion

  • Map your exact IT deployment density across the white space to determine the required number and capacity of simulation units.

  • Verify the electrical receptacle types and voltage on your installed PDUs to ensure strict compatibility with the test equipment.

  • Coordinate with your certified commissioning agent to write a detailed IST script that includes specific, timed failure scenarios.

  • Install temporary temperature and humidity sensors at the top, middle, and bottom of every rack location to capture vertical thermal gradients.

  • Integrate all temporary thermal sensor telemetry directly into your BMS to establish a permanent performance baseline for future reference.

FAQ

Q: What is server heat load simulation?

A: It is the process of using specialized electrical heaters with integrated fans to mimic the exact thermal output and airflow characteristics of IT equipment, allowing facility operators to test cooling systems before actual servers are installed.

Q: Why can't we just use regular space heaters for data center testing?

A: Space heaters do not simulate the front-to-back airflow (CFM) or the specific temperature differential (Delta-T) of enterprise servers, leading to inaccurate airflow mapping and false confidence in cooling performance.

Q: What is the difference between a rack-mounted and a floor-standing loads bank?

A: Rack-mounted units are installed directly into server cabinets to test localized airflow and containment, while floor-standing units are larger devices used to apply bulk heat to a room to test the overall capacity of the central cooling plant.

Q: How much heat load should be simulated during commissioning?

A: Best practices dictate simulating 100% of the design IT load, often stepped up in increments (25%, 50%, 75%, 100%), to ensure the cooling infrastructure can handle peak capacity and failover scenarios.

Q: Does heat load testing also validate the electrical infrastructure?

A: Yes. Because a loads bank draws actual electrical power to generate heat, the simulation simultaneously tests the UPS systems, PDUs, backup generators, and electrical switchgear under full operational stress.

Q: How long should a heat load simulation test run?

A: A comprehensive Integrated Systems Test (IST) typically runs for 12 to 72 hours, depending on the facility size, tier certification requirements, and the number of failure scenarios being validated.
