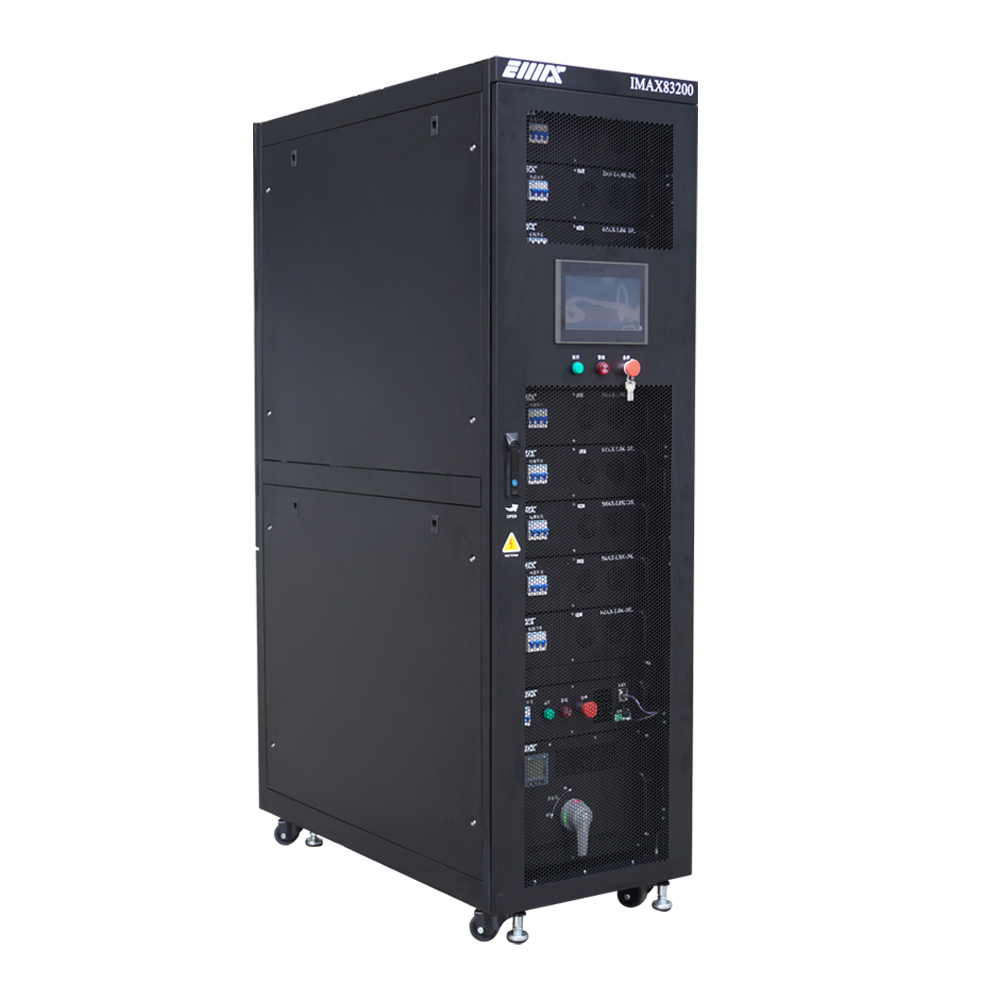

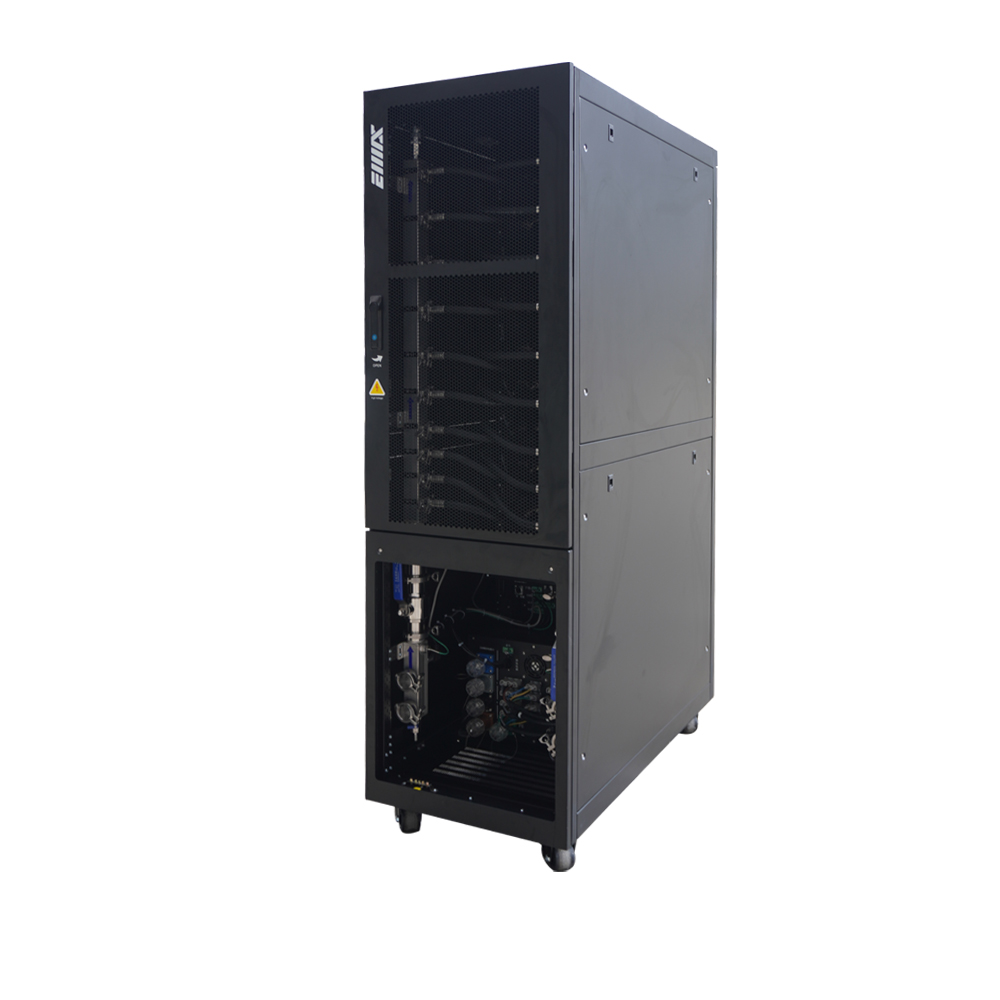

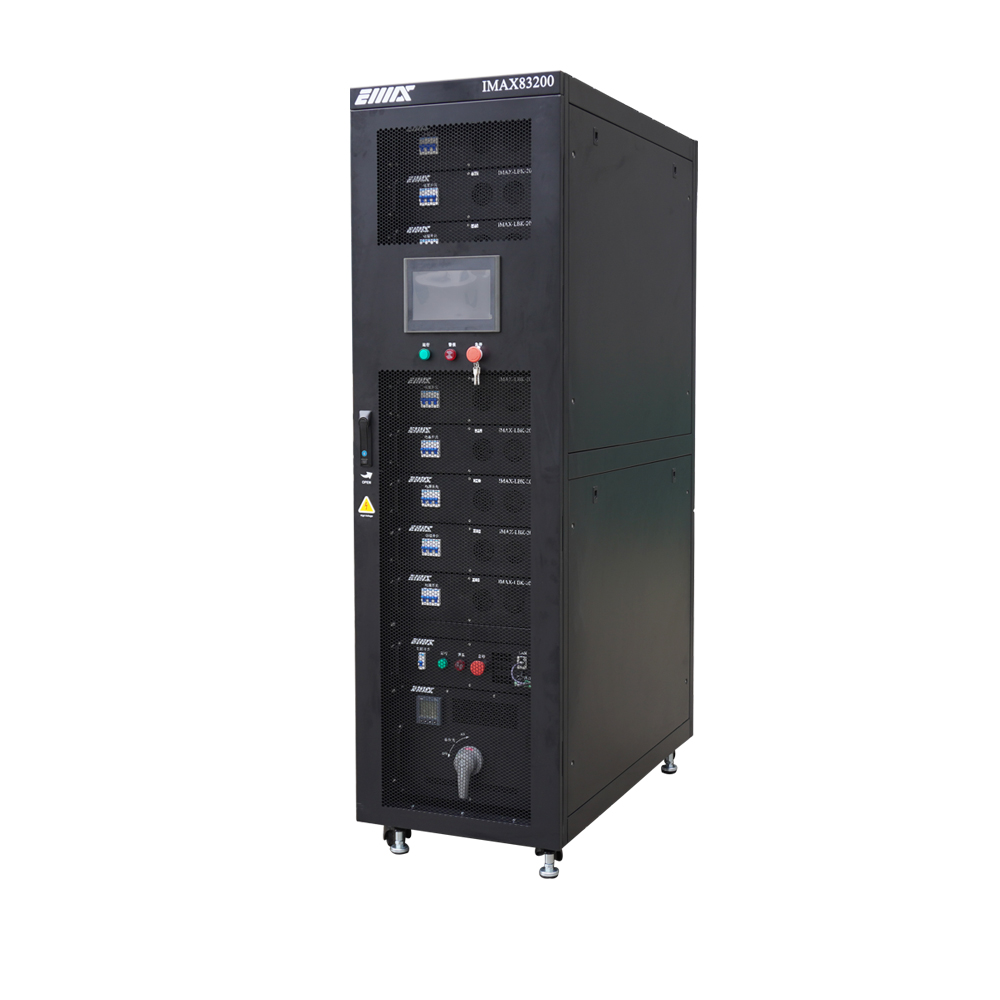

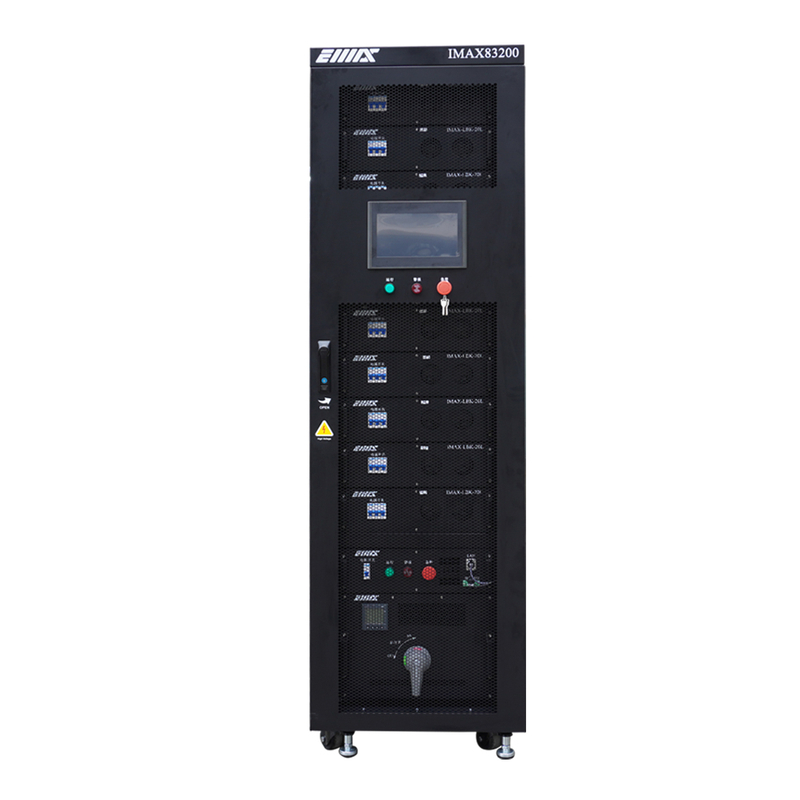

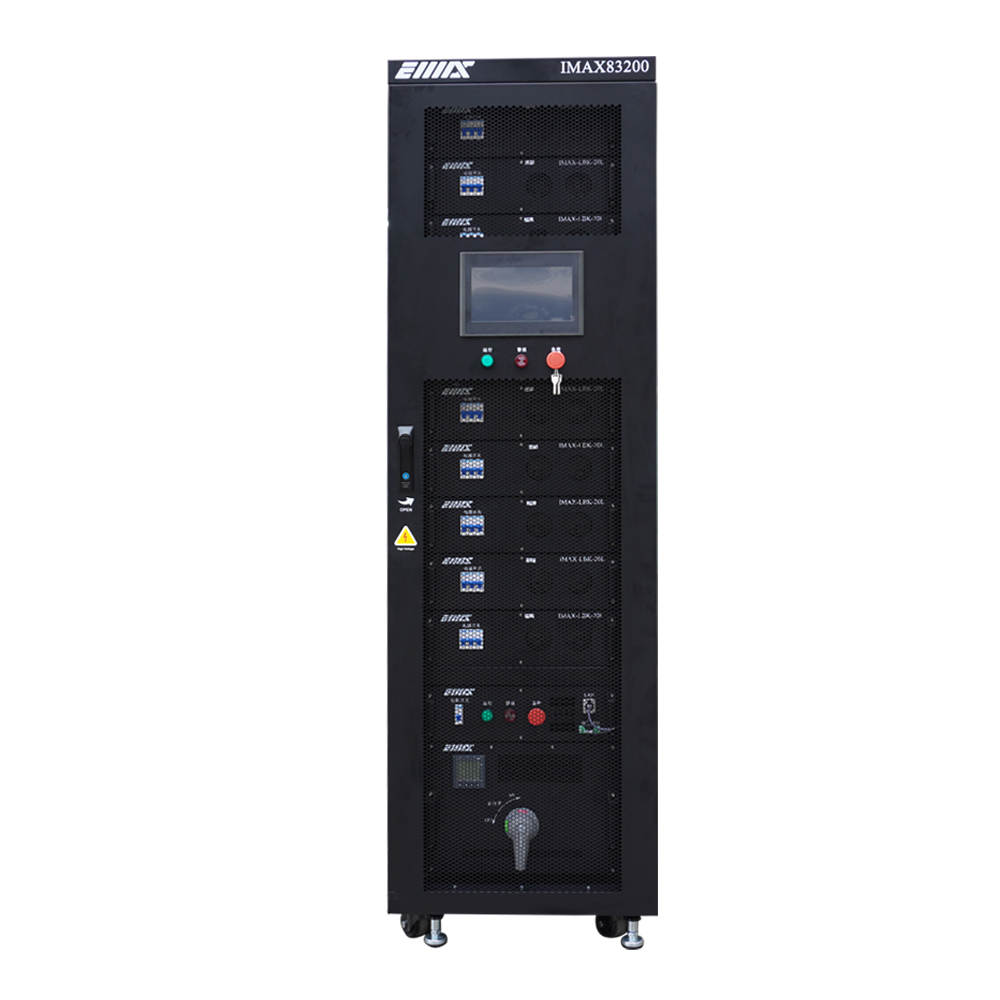

200kW Liquid Cooled Load Bank Cold Plated In Rack For CDU Testing

Key Specifications

• Working Cycle: Continuous full-load operation

• Ambient Temperature: -10℃ to 50℃

• Liquid Flow: Bottom feed, right inlet / left outlet

• Heat Transfer Fluid: 25% propylene glycol or pure water

• Humidity: 0–95% RH (non-condensing)

• Form Factor: 42U standard rack enclosure

• Instrumentation: Digital meters (V, A, kW) with real-time data logging

• Control Power: External 400V AC supply/test circuit

• Inlet Water Temp: 5℃ to 40℃

• Delta T: <12℃

• Load Elements: High-capacity Nichrome resistors, supported by stainless steel rods and high-temperature refractory ceramics for rapid heat dissipation

Design & Safety

• Safety Features: Over-temperature, over/under-voltage, over/under-pressure, and current imbalance protection

• Connections: 5-core industrial plug & socket for reliable power linking

• Scalability: Daisy-chain multiple units for expanded load capacity

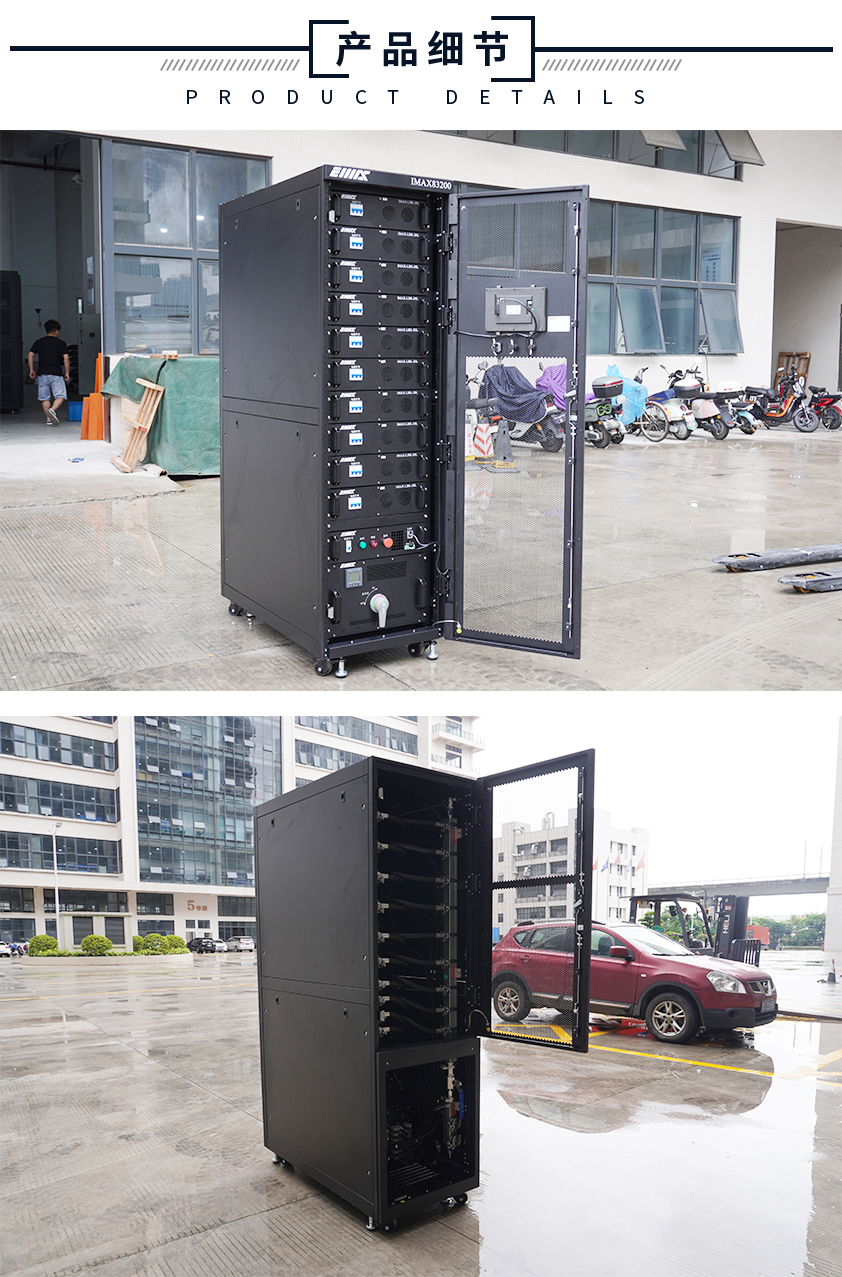

• Enclosure: Heavy-gauge steel with powder coating; lockable hinged doors; forklift pockets for easy transport and deployment

Data Center Applications

Key Features of Water Cooled Load Bank:

1. High Power Capacity: Water-cooled load banks are capable of handling high power levels, making them ideal for testing and maintaining large-scale electrical systems, such as data centers, power plants, and industrial facilities.

2. Efficient Cooling: The liquid cooling system provides superior cooling efficiency compared to air-cooled systems, allowing the load bank to operate continuously at high power levels without overheating.

3. Compact Design: Due to the high efficiency of liquid cooling, these load banks can be more compact than their air-cooled counterparts, saving space in environments where space is at a premium.

4. Reduced Noise Levels: water-cooled systems are generally quieter than air-cooled systems, as they do not require large fans for heat dissipation. This makes liquid-cooled load banks suitable for use in noise-sensitive environments.

5. Enhanced Safety: The use of a closed-loop liquid cooling system reduces the risk of overheating and fire hazards, ensuring safer operation, especially in high-stakes environments.

Advantages of Water-Cooled Load Banks:

• High Efficiency: The ability to dissipate heat more effectively allows for continuous high-power operation.

• Space Savings: Compact design makes them ideal for confined spaces.

• Noise Reduction: Quieter operation compared to air-cooled load banks.

• Safety: Lower risk of overheating and fire.
