Ever wondered what a reactive load is and how it impacts your electrical systems? You’re in the right place. A reactive load is a crucial component in AC circuits that stores and releases energy, affecting efficiency and stability. In this blog, we’ll dive deep into the world of reactive loads, exploring their types, characteristics, and real-world applications. Ready to unlock the secrets of reactive loads? Let’s get started!
A reactive load is essentially an electrical load that temporarily stores energy in electric or magnetic fields and then returns it to the power source. Think of it as a dynamic energy reservoir that interacts with the power system in a cyclical manner. Unlike resistive loads, which convert electrical energy into heat or motion, reactive loads don’t consume real power. Instead, they create a phase shift between voltage and current, which is a key characteristic.
In electronics and power systems, it’s crucial for several reasons. First, reactive loads help us model and manage non-linear and non-resistive components like motors and transformers. These components are everywhere in industrial and residential applications, from HVAC systems to power distribution networks. Second, reactive loads are essential for testing generators and inverters. By simulating real-world conditions, we can ensure that these devices perform reliably under various loads. Lastly, reactive loads play a significant role in power factor correction, which is vital for improving system efficiency and reducing energy losses.
Now, let’s delve into the difference between reactive and resistive loads. A resistive load, such as a light bulb or a heater, consumes real power and converts it into heat or light. The voltage and current are in phase, meaning they reach their peaks and troughs simultaneously. On the other hand, a reactive load, like an electric motor or a capacitor, doesn’t consume real power. Instead, it generates reactive power, measured in volt-amperes reactive (VAR). The voltage and current are out of phase, which means they don’t align perfectly. This phase difference is what gives reactive loads their unique properties.
Load Type | Energy Usage | Power Type | Voltage-Current Phase | Examples |
Reactive | Returns energy to the source | Reactive power (VAR) | Out of phase | Motors, transformers, capacitors |
Resistive | Consumes energy (real power) | Active power (Watts) | In phase | Light bulbs, heaters, resistors |
Understanding these differences is fundamental for anyone working with electrical systems. It allows engineers to design more efficient circuits, optimize energy use, and ensure the stability of power grids. Whether you’re a student learning about AC circuits or a professional working on power system design, grasping the concept of reactive loads is essential.
It’s all about inductance and capacitance. These two elements are key players in reactive loads. Inductance involves magnetic fields, while capacitance deals with electric fields. Think of them as the dynamic duo of energy storage.
Inductance and capacitance are the backbone of reactive loads. Inductors store energy in magnetic fields, and capacitors store energy in electric fields. When current flows through an inductor, it creates a magnetic field that stores energy. Similarly, when voltage is applied to a capacitor, it charges up, storing energy in its electric field.
Here’s the cool part: the energy stored in these fields isn’t lost. It’s temporarily held and then released back into the circuit. This is what makes reactive loads different from resistive loads, which convert energy into heat and don’t give it back. In a reactive load, the energy cycles back and forth between the source and the load.
So, how does this energy return to the source? It’s all about timing. In an AC circuit, the current and voltage are constantly changing. When the current decreases, the magnetic field in an inductor collapses, releasing its stored energy back into the circuit. For capacitors, when the voltage drops, they discharge, sending energy back to the source. This cycle repeats, creating a continuous flow of energy.
In a reactive load, the current and voltage aren’t in sync. They’re out of phase. For inductive loads, the current lags behind the voltage. For capacitive loads, the current leads the voltage. This phase difference is crucial because it affects how energy is stored and released. It also impacts the overall efficiency and stability of electrical systems.Whether you’re working on a simple circuit or a complex power grid, knowing how reactive loads work is essential. It’s all about managing energy efficiently and ensuring everything runs smoothly.
Reactive loads are fascinating because they handle energy differently than other loads. First up, energy storage. Unlike resistive loads that turn energy into heat, reactive loads store it. This means they don’t consume real power. Instead, they generate reactive power, measured in VARs. Think of it like a temporary energy holding tank.
Reactive loads show non-linear impedance. This means their resistance to current changes with frequency. It’s not a fixed value like in resistive loads. This behavior is crucial in AC systems where frequency matters.
Phase shift is another key feature. In reactive loads, voltage and current are out of sync. For inductive loads, current lags behind voltage. Imagine a motor: when voltage peaks, current is still rising. For capacitive loads, current leads voltage. Picture a capacitor charging quickly as voltage builds up. These phase differences affect how energy flows in circuits.
Let’s compare reactive and resistive loads. Here’s a handy table to see the differences:
Characteristic | Reactive Load | Resistive Load |
Energy Usage | Stores and returns energy | Converts energy to heat |
Power Type | Reactive power (VARs) | Real power (Watts) |
Phase Shift | Voltage and current out of phase | Voltage and current in phase |
Examples | Motors, transformers, capacitors | Light bulbs, heaters |
Understanding these characteristics helps us see why reactive loads are important in many applications. From power systems to audio equipment, knowing how they work lets us design and use them effectively.
Reactive loads come in two main flavors: inductive and capacitive. Each type has its own unique properties and applications. Let’s dive into what makes them tick.
Inductive loads are all about inductance. Inductance is the property of a conductor that opposes changes in current. It creates a magnetic field when current flows through it. This magnetic field stores energy, which is then released back into the circuit.
Electric Motors: These convert electrical energy into mechanical energy. The coils in the motor act as inductors, storing energy in their magnetic fields.
Transformers: These devices transfer electrical energy between circuits using magnetic fields. They’re essential for stepping up or down voltage levels.
Solenoids: These are coils of wire that generate a magnetic field when current passes through them. They’re often used in electromechanical devices.
In circuits, inductive loads cause the current to lag behind the voltage. This phase shift is due to the magnetic field’s resistance to changes in current. As a result, inductive loads generate reactive power, which circulates between the load and the power source.
Capacitive loads involve capacitance. Capacitance is the ability of a conductor to store an electric charge. When voltage is applied, a capacitor charges up, storing energy in its electric field. This energy is then released when the voltage decreases.
Capacitor Banks: These are groups of capacitors used to store and release energy in power systems. They help correct power factors and stabilize voltage levels.
Power Factor Correction Devices: These devices use capacitors to counteract the effects of inductive loads, improving overall system efficiency.
In circuits, capacitive loads cause the current to lead the voltage. This phase shift occurs because capacitors charge and discharge in response to voltage changes. As a result, capacitive loads also generate reactive power, but in a different way than inductive loads.
Characteristic | Inductive Loads | Capacitive Loads |
Energy Storage | Magnetic field | Electric field |
Phase Shift | Current lags voltage | Current leads voltage |
Examples | Motors, transformers, solenoids | Capacitor banks, power factor correction devices |
Power Type | Reactive power (VARs) | Reactive power (VARs) |
Understanding the differences between inductive and capacitive loads is crucial for anyone working with electrical systems. Whether you’re designing circuits or optimizing power systems, knowing how these loads behave can help you make informed decisions.
Reactive loads play a vital role in modern electrical systems. From testing equipment to improving grid performance, they ensure that power systems operate efficiently and reliably. Understanding these applications helps us appreciate the importance of reactive loads in everyday life.

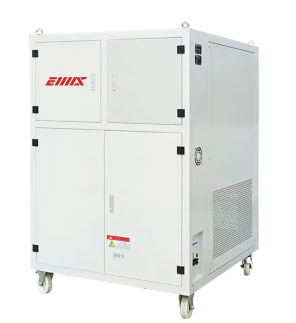

Reactive loads are crucial for testing electrical equipment. A reactive load bank is a device that simulates real-world electrical loads. It’s used to test generators, UPS systems, and inverters. By mimicking the behavior of inductive and capacitive loads, these banks ensure that equipment performs well under different conditions.
In power system design, reactive loads help model components like motors and transformers. These components are common in industrial and residential settings. Engineers use reactive loads to balance the system and ensure stability. Load balancing is key in distribution networks, where managing reactive power helps maintain voltage levels and prevent outages.
Power factor (PF) is a measure of how efficiently electrical power is used. Reactive loads impact PF because they generate reactive power. Capacitors and reactors are used to correct PF. Capacitors supply reactive power to inductive loads, improving overall efficiency. This benefits utilities by reducing losses and improving grid stability. Consumers also benefit from lower energy costs and more reliable power.
Smart grids use advanced technologies to monitor and control power flow. Reactive power monitoring is a key part of this. By managing reactive power, smart grids enhance stability and efficiency. This means fewer outages and better performance for everyone connected to the grid.
Reactive load plays a crucial role in electrical systems. It impacts efficiency, voltage stability, and overall performance.
Reactive loads affect system efficiency. They don’t consume real power but generate reactive power. This means more energy circulates without doing useful work. Utilities must generate extra power to meet this demand. This leads to higher costs and energy losses in transmission lines.
Voltage stability is another key area. Reactive loads can cause voltage drops or swells. In inductive loads, the current lags behind voltage. This can lead to voltage drops when the load increases. Capacitive loads, on the other hand, can help stabilize voltage by leading the current.
Designing power networks involves careful consideration of reactive loads. Engineers must balance inductive and capacitive loads to maintain efficiency. Power factor correction devices, like capacitors, are often used to counteract inductive loads. This helps bring the power factor closer to 1, improving overall system efficiency.
Reactive loads increase current demand. The apparent power (S) is higher due to reactive power (Q). This means conductors and transformers must handle more current. Larger equipment is needed to manage this increased demand. This impacts the design and cost of power systems.
In real-world applications, reactive loads impact grid performance. Voltage fluctuations can affect sensitive equipment. Power factor issues can lead to inefficiencies and higher costs. Managing reactive loads is essential for reliable grid operation. Smart grid technologies monitor and control reactive power flow to optimize performance.
A: Inductive loads, like motors and transformers, store energy in magnetic fields causing current to lag behind voltage. Capacitive loads, such as capacitors, store energy in electric fields making current lead voltage.
A: Reactive loads don’t directly damage equipment but can cause voltage fluctuations and increased current demand. This may stress components if not managed properly.
A: Reactive loads increase apparent power, causing utilities to generate more electricity. This leads to higher transmission losses and costs, potentially raising electricity bills.
A: Yes, reactive loads like the Suhr Reactive Load mimic speaker cabinets, capturing audio dynamics without needing a physical speaker. This is useful for recording and live performances.
A: Reactive power is measured using a power analyzer or a wattmeter. It calculates the VARs by measuring voltage, current, and their phase difference.
Reactive loads are essential in electrical systems, impacting efficiency, voltage stability, and overall performance. They store energy in electric or magnetic fields and return it, unlike resistive loads that convert energy into heat. Understanding reactive loads helps in designing efficient circuits, balancing power systems, and improving grid stability.
Whether in power system design, testing equipment, or smart grid integration, reactive loads play a crucial role. Guangdong Emax Electrical Co., Ltd. offers advanced solutions to manage reactive loads, enhancing system efficiency and reliability. Explore their products to optimize your electrical systems and ensure peak performance.
