In the realm of electrical power systems and testing, two terms often come up: “load bank” and “dummy load.” While both are used to simulate electrical loads, they serve different purposes and offer distinct functionalities. Understanding the differences between a load bank and a dummy load is crucial for anyone involved in the testing, maintenance, or management of power systems. This article will delve into the unique roles, applications, and key differences between load banks and dummy loads, helping you make informed decisions for your specific testing needs. We will also explore the innovative solutions offered by Guangdong Emax Electrical Co., Ltd., a leading provider of load banks and power supply solutions.

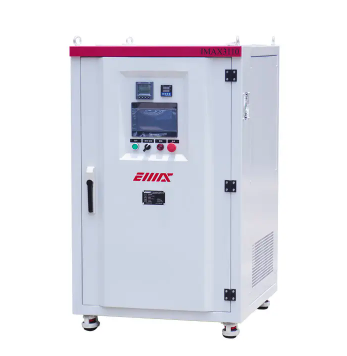

A load bank is a specialized piece of equipment designed to simulate real-world electrical loads for testing power systems. It is used to test power sources such as generators, uninterruptible power supplies (UPS), and batteries without connecting them to their normal operating load. Load banks are essential for ensuring that power systems can handle the demands placed on them during actual operation.
Load banks consist of several critical components that enable them to simulate electrical loads effectively:
Resistors and Heating Elements: These components convert electrical energy into heat, simulating the load that would be placed on a power source during normal operation.
Cooling Systems: Load banks generate significant heat during operation. Cooling systems, whether air or water-based, are essential for dissipating this heat and ensuring the load bank operates safely.
Control and Monitoring Instruments: These instruments allow technicians to control the load applied to the power source and monitor critical parameters such as voltage, current, and power factor.
Safety Features: Load banks are equipped with various safety features, including circuit breakers, fuses, and temperature sensors, to prevent damage to the equipment and ensure safe operation.
Load banks come in various types, each designed to simulate different types of electrical loads:
Resistive Load Banks: These are the most common type of load banks. They simulate purely resistive loads, such as those created by lighting and heating systems.
Inductive Load Banks: Inductive load banks simulate inductive loads, which are characterized by a lagging power factor. They are used to test systems that include motors and transformers.
Capacitive Load Banks: Capacitive load banks simulate capacitive loads, which have a leading power factor. They are used in applications involving electronic and non-linear loads.
Combined Load Banks: These load banks combine resistive, inductive, and capacitive elements to simulate a wide range of load conditions, making them versatile tools for comprehensive testing.
A dummy load is a device used to simulate an electrical load, typically for testing purposes. It is commonly used in applications where the primary goal is to absorb power without the need for detailed performance measurements. Dummy loads are often used in radio frequency (RF) applications and audio systems to test equipment without broadcasting signals or producing sound.
Dummy loads are relatively simple devices, typically consisting of:
Resistors: These components absorb the electrical energy and convert it into heat.
Heat Sinks: Used to dissipate the heat generated during operation.
Fixed Resistance Values: Typically rated at 50 ohms for RF applications, dummy loads have fixed resistance values to match the impedance of the equipment being tested.
Radio Frequency (RF) Testing: Dummy loads are used to test radio transmitters without broadcasting signals.
Audio Systems: Dummy loads simulate loudspeakers to test audio amplifiers without producing sound.
Basic Power Supply Testing: Used to test power supplies for basic functionality.
When it comes to testing electrical power systems, understanding the differences between a load bank and a dummy load is crucial. Both devices serve the purpose of simulating electrical loads, but they do so in very different ways and for different reasons. Here’s a detailed breakdown of their key differences:
Load banks are designed to simulate real-world electrical loads for detailed performance testing. They are used to test power sources such as generators, uninterruptible power supplies (UPS), and batteries under controlled conditions. Load banks provide critical data on system performance, including voltage stability, frequency, fuel consumption, and total harmonic distortion (THD). This makes them indispensable for ensuring the reliability and efficiency of power systems.
Dummy loads, on the other hand, are designed to absorb power without providing detailed performance measurements. They are commonly used in radio frequency (RF) applications and audio systems to test equipment without broadcasting signals or producing sound. Dummy loads are simple devices that offer basic functionality, making them suitable for situations where detailed performance data is not required.
Load banks are sophisticated systems with advanced features. They come in various types, including resistive, inductive, capacitive, and combined load banks, allowing for the simulation of different types of electrical loads. Load banks often include programmable load profiles, remote monitoring capabilities, and dynamic loading options. These features enable technicians to conduct thorough performance tests and obtain comprehensive data on system behavior under various load conditions.
In contrast, dummy loads are relatively simple devices. They typically consist of fixed resistive components and are designed for basic testing needs. Dummy loads do not include advanced control features or monitoring capabilities. They are easy to set up and use, making them ideal for uncomplicated test situations where detailed performance insights are not necessary.
Load banks are capable of conducting long-duration tests, often lasting several hours or more. They can simulate a wide range of load conditions, from low to high loads, and provide detailed insights into system performance. Load banks are also capable of dynamic loading, allowing technicians to vary the load in real-time to test the operational limits and potential failures of power systems. This comprehensive testing capability helps identify potential issues before they cause critical failures, reducing downtime and maintenance costs.
Dummy loads, however, are limited to short-duration tests, typically ranging from a few minutes to a few hours. They do not offer dynamic loading capabilities and are not designed for long-duration tests. Dummy loads are primarily used for basic operational checks and do not provide detailed performance insights. They are suitable for simple testing needs where the primary goal is to ensure that the equipment is functioning correctly without the need for detailed performance data.
| Feature | Load Bank | Dummy Load |
|---|---|---|
| Test Duration | Long-duration tests (hours) | Short-duration tests (minutes to a few hours) |
| Dynamic Testing | Capable of dynamic load testing (varying loads) | No dynamic testing capabilities |
| Performance Insights | Provides detailed insights into system behavior under various load conditions | Limited to basic operational checks |
Load banks come with advanced control systems that allow for precise load adjustments and real-time monitoring. Many load banks include programmable load profiles, enabling technicians to set specific load conditions for different test scenarios. Remote monitoring capabilities allow operators to track performance metrics such as voltage, frequency, and current from a distance, often through a web interface or proprietary software. This immediate feedback enables technicians to make adjustments on the fly, ensuring that the power system stays within operating specifications.
Dummy loads, due to their simple design, do not include advanced control features or monitoring capabilities. They typically consist of fixed resistive components that absorb power as needed. While they can indicate whether the load is operational, they do not provide any feedback on performance metrics such as voltage, current, or temperature. This lack of detailed feedback limits their use to basic operational checks and simple testing needs.
Load banks are designed to provide detailed measurements of output parameters. During a load test, a load bank can measure and record critical data such as voltage stability, frequency, fuel consumption, and total harmonic distortion (THD). For example, a 1,500 kW generator connected to a load bank can provide key data points on its operational output voltage and frequency stability. This detailed measurement capability allows technicians to optimize system performance, identify potential issues, and ensure compliance with industry standards.

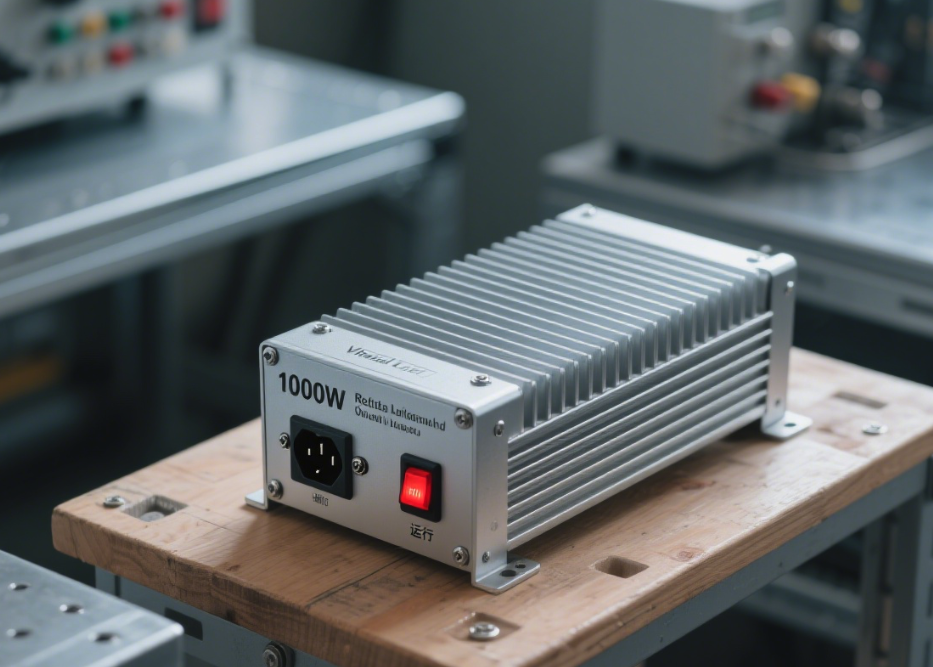

Dummy loads, however, do not have the capability to measure output parameters. While they can absorb power and dissipate it as heat, they do not provide any detailed feedback on performance metrics. For instance, a 1,000-watt dummy load used to test a radio transmitter will only indicate whether the load is operational, without providing any data on voltage, current, or temperature. This limitation makes dummy loads unsuitable for applications where detailed performance data is required.
Load banks are equipped with advanced safety features to ensure safe operation during testing. These features include overtemperature protection, overcurrent protection, and overvoltage protection, which help prevent equipment damage and ensure reliable performance. Load banks are designed to handle long-duration and high-load tests, making them suitable for critical power system testing where reliability and safety are paramount.
While dummy loads are relatively simple devices, they are designed to be reliable and durable. They typically include basic thermal resistance to handle the heat generated during operation. However, they lack the advanced safety features found in load banks. Manual monitoring is often required to ensure that the dummy load operates within safe temperature limits and does not cause damage to the equipment being tested.
| Feature | Load Bank | Dummy Load |
|---|---|---|
| Safety Features | Built-in safety mechanisms (overtemperature protection, overcurrent protection) | Basic thermal resistance, no advanced safety features |
| Reliability | Ensures safe operation during long-duration and high-load tests | Limited to manual monitoring to avoid damage during operation |
Generator Testing: Load banks are used to test generators for efficiency and reliability. For example, a 1,000 kW generator can be tested for 12 hours to measure fuel consumption and ensure it operates efficiently.
UPS System Testing: Load banks validate the performance of UPS systems under various loads. For instance, a 150 kVA UPS system can be tested to ensure voltage stability under different load conditions.
Battery Testing: Load banks are used to assess the health and capacity of batteries, ensuring they can deliver the required power when needed.
Data Center Testing: Load banks are crucial for ensuring the reliability of data center power systems, preventing costly downtime.
RF Testing: Dummy loads are used to test radio transmitters without broadcasting signals. For example, a 1,000-watt dummy load can be used to test a radio transmitter at full power without signal transmission.
Audio Systems: Dummy loads simulate loudspeakers to test audio amplifiers without producing sound. For instance, a 200-watt dummy load can be used to test an audio amplifier.
Basic Power Supply Testing: Dummy loads are used to test power supplies for basic functionality, ensuring they can handle the rated load without detailed performance insights.
Load banks offer advanced testing capabilities and detailed performance data, while dummy loads provide basic functionality without detailed measurements.
Use a load bank when you need comprehensive testing and detailed performance data. Use a dummy load for simple testing needs without detailed measurements.
Consider your testing requirements, load type, control and monitoring needs, budget, and safety requirements when selecting a load bank.
Load banks have a higher investment cost ($5,000 to $50,000) for advanced capabilities, while dummy loads are more affordable ($50 to $500) for basic functionality.
No, dummy loads are designed for basic operational checks and do not provide detailed performance data like load banks.
Understanding the differences between a load bank and a dummy load is essential for selecting the right tool for your testing needs. Load banks offer advanced capabilities for comprehensive testing and detailed performance data, making them ideal for critical power system testing. Dummy loads, on the other hand, provide basic functionality for simple testing needs without detailed performance insights. By considering your specific testing requirements, control needs, and budget constraints, you can make an informed decision that ensures the reliability and performance of your power systems.
