Reactive loads are everywhere in our electrical systems, playing a crucial role in how we use and manage energy. From the motors in your home appliances to the capacitors in power grids, understanding these components can help you optimize efficiency and reduce costs. In this blog, we’ll explore various examples of reactive loads, their applications, and why they matter. Let’s dive in and discover how reactive loads impact our daily lives and energy use!
Reactive loads are components in electrical circuits that store and release energy. Unlike resistive loads that turn energy into heat, reactive loads use inductors or capacitors to temporarily hold energy. This makes them useful in many electronic devices and power systems.
Reactive power, measured in volt-amperes reactive (VARs), is the energy that flows back and forth in a circuit. It doesn’t do work like real power but is essential for maintaining voltage levels. In power systems, managing reactive power ensures stable operation and prevents voltage drops.
Inductors and capacitors are key to reactive loads. Inductors store energy in a magnetic field when current flows through them and release it when the current decreases. Capacitors store energy in an electric field between two plates and release it when needed. This cycle of storing and releasing energy helps balance the power in electrical systems.
Ceiling fans are a common sight in many homes. The motors in these fans are inductive because they store energy in magnetic fields. This storage and release of energy affect the power factor, making your electricity bill higher if not managed properly. Inductive motors draw reactive power, which impacts overall energy efficiency. For example, a typical ceiling fan might draw 50-100 VARs, contributing to the total reactive power in a household.
Air conditioners are another significant source of inductive reactive loads. The compressor motors in AC units are classic examples of inductive loads. During startup, these motors draw a surge of reactive power, which can cause voltage drops and affect grid stability. Utilities compensate for this by using capacitors to balance the load and maintain grid stability. For instance, a large AC unit might draw several kilovars (kVARs) during startup, necessitating power factor correction to manage the reactive power effectively.
Refrigerators and freezers also contribute to inductive reactive loads. These appliances use inductive motors for compressors and fans, which continuously draw reactive power. Managing this reactive power is crucial for energy efficiency and reducing electricity costs. For example, a typical refrigerator might draw around 100-200 VARs continuously, impacting the overall power factor in a household.
Washing machines are equipped with multiple motors and solenoids, making them significant inductive loads. The energy consumption of these machines is high, and managing reactive power is essential for efficiency. For example, a modern washing machine might draw 200-300 VARs during operation. Using power factor correction capacitors can help reduce energy waste and improve overall efficiency.
Industrial motors, used in manufacturing, are high-horsepower inductive loads. These motors significantly impact commercial power grids, often requiring power factor correction to maintain efficiency. For example, a large industrial motor might draw several kilovars (kVARs) continuously, affecting overall grid performance. Managing this reactive power is crucial for maintaining stable operation and reducing energy costs.
Transformers are always reactive, even without a load. They are common in substations and electronics, storing energy in magnetic fields. Managing the reactive power of transformers is crucial for maintaining grid stability and efficiency. For example, a small transformer might have a reactive power rating of a few hundred VARs, while a large substation transformer might handle several megavars (MVARs).
Fluorescent lighting ballasts create a lagging power factor due to their inductive nature. They are being replaced by LEDs to reduce the reactive impact on power systems. For example, a typical fluorescent ballast might draw 50-100 VARs, contributing to the total reactive power in a building. Switching to LEDs can help improve overall energy efficiency and reduce costs.
Elevators and escalators have high inductive demand during start and stop cycles. For example, hotel elevator systems require careful management of reactive power to ensure smooth operation and prevent power surges. A typical elevator might draw several kilovars (kVARs) during startup, necessitating power factor correction to manage the reactive power effectively.

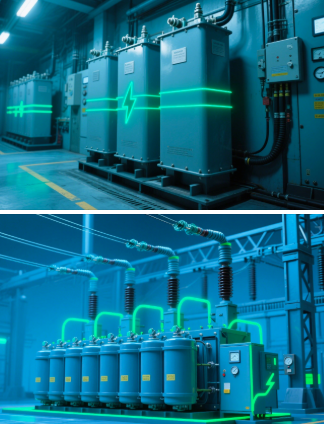

Power factor correction capacitors are installed to offset the impact of inductive loads. They are common in factories and large buildings, helping to balance the power factor and improve energy efficiency. These capacitors store energy in electric fields, providing reactive power when needed. For example, a factory might install several kilovar (kVAR) capacitors to correct the power factor and reduce energy costs.
Long AC transmission cables act as large capacitive loads due to line capacitance. They are relevant in rural grid infrastructure, where managing reactive power is crucial for maintaining voltage levels and preventing power losses. For example, a long transmission line might have a capacitive reactive power rating of several megavars (MVARs), requiring careful management to ensure stable operation.
Capacitor banks in substations are used intentionally to balance grid load. They provide reactive control, ensuring stable operation and efficient power distribution. These banks store energy in electric fields, releasing it when needed to balance the grid. For example, a substation might use a capacitor bank rated at several megavars (MVARs) to manage reactive power and maintain grid stability.
Reactive load boxes are used in place of speaker cabinets in audio engineering. They simulate the impedance curve of real speakers, providing a realistic load for guitar amplifiers. This helps maintain the natural dynamics and response of the amp, crucial for tone quality. For example, a Suhr Reactive Load or Two Notes Torpedo can provide a realistic load, ensuring high-quality sound reproduction.
Musicians prefer reactive loads because they provide a natural tone and dynamic response. For example, in studio recording, using a reactive load box allows for better control over the amp’s output, ensuring high-quality sound reproduction. A reactive load box can simulate the impedance curve of a real speaker, providing a more natural and dynamic sound compared to a resistive load. This is crucial for achieving the desired tone and ensuring high-quality recordings.
Many everyday devices combine resistive and reactive loads. These complex loads require careful management to ensure efficient operation and energy use.
Take a microwave oven, for example. It has a heating element that’s purely resistive, converting electricity directly into heat. But it also has a motor to turn the food, which is reactive. The motor stores and releases energy in its magnetic field, affecting the overall power factor of the appliance.
HVAC systems are another example of combined loads. They include compressors and blowers, which are inductive and draw reactive power. These systems also have heaters, which are resistive and consume real power. Managing both types of loads is crucial for maintaining energy efficiency and system performance.
Component | Load Type | Function |
Heating Element | Resistive | Converts electricity to heat |
Motor | Reactive | Turns the food |
Compressor | Reactive | Compresses refrigerant |
Blower | Reactive | Moves air |
Heater | Resistive | Provides additional heating |
In both cases, understanding and managing these combined loads helps optimize energy use and improve overall efficiency.
Reactive loads significantly impact power factor and efficiency. They affect how power is used and billed, especially for industrial users. Understanding and managing reactive power is crucial for optimizing energy use and reducing costs.
Reactive loads draw reactive power (VARs), which doesn’t do useful work but affects the overall power factor. A low power factor means more current is needed to deliver the same amount of real power, leading to higher energy losses and inefficiencies. For example, an industrial motor with a low power factor might require more energy to operate, increasing costs and reducing efficiency.
For industrial users, electricity billing often includes charges for reactive power. Utilities measure both real power (kW) and reactive power (kVAR) to calculate the power factor. A low power factor can result in additional charges, making it important for businesses to manage reactive loads to reduce costs. For instance, a factory with a power factor of 0.8 instead of the ideal 1.0 might face higher electricity bills due to increased reactive power usage.
Utilities use various strategies to manage reactive power and maintain grid stability. Smart grids, for example, use advanced monitoring and control systems to optimize power distribution and manage reactive loads in real-time. Capacitor banks are another common solution, providing reactive power to compensate for inductive loads and improve the power factor. These strategies help reduce energy losses and improve overall grid efficiency.
Strategy | Description |
Smart Grids | Advanced monitoring and control for real-time optimization |
Capacitor Banks | Provide reactive power to compensate for inductive loads |
Managing reactive loads is essential for improving energy efficiency and reducing costs. By understanding their impact and implementing effective strategies, both industrial users and utilities can optimize energy use and maintain stable power systems.
Identifying and measuring reactive loads is essential for managing energy use. Tools like power analyzers, clamp meters, and power factor meters help in this process. These devices provide detailed insights into how much reactive power a device uses.
Power analyzers are sophisticated tools that measure both real and reactive power. Clamp meters can measure current and voltage, helping to calculate power factor. Power factor meters directly show the power factor of a device. Each tool plays a role in understanding reactive loads.
Reactive loads cause a phase shift between current and voltage. This phase shift is crucial for calculating the power factor. A power factor of 1 means no phase shift, while a lower power factor indicates a significant phase shift. Understanding this shift helps in identifying reactive loads.
Let’s walk through measuring the power factor of a refrigerator. First, connect a power analyzer to the refrigerator. The analyzer will show the current and voltage waveforms. Next, observe the phase shift between these waveforms. A significant phase shift indicates a reactive load.
Connect the Analyzer: Attach the power analyzer to the refrigerator.
Observe Waveforms: Look at the current and voltage waveforms.
Calculate Power Factor: Use the phase shift to calculate the power factor.
Interpret Results: A low power factor means the refrigerator has a significant reactive load.
By following these steps, you can identify and measure reactive loads in any device. This knowledge helps in optimizing energy use and improving overall efficiency.
A: Yes, most motors are reactive loads because they use inductors to store and release energy, affecting the power factor.
A: Absolutely, many devices like microwave ovens have both resistive (heating element) and reactive (motor) components.
A: No, LEDs are not reactive loads; they are resistive and do not store energy in magnetic or electric fields.
A: Reactive loads in home appliances can lower the power factor, increasing energy consumption and potentially raising electricity bills.
A: Homeowners don’t usually need to worry about reactive loads, but being aware can help in choosing more energy-efficient appliances.
Reactive loads play a crucial role in our daily lives, from the motors in our appliances to the capacitors in power grids. Understanding these loads helps us optimize energy use and reduce costs. Whether you’re managing an industrial plant or simply trying to cut your home electricity bill, knowing how reactive loads work can make a big difference.
