Load banks play a crucial role in the world of electrical testing and power system validation. Whether you are managing a data center, maintaining critical backup generators, or ensuring the reliability of renewable energy systems, understanding how a load bank works is essential. In this article, we will delve into the inner workings of load banks, exploring their purpose, types, and applications.
A load bank is a specialized piece of electrical test equipment designed to simulate an electrical load. Its primary purpose is to test power sources such as generators, batteries, and uninterruptible power supplies (UPS) without connecting them to their normal operating load. This is crucial because it allows technicians to verify the performance and reliability of these power sources under controlled conditions, ensuring they can handle real-world demands when needed.
Load banks are essential tools in various industries, from manufacturing and healthcare to data centers and renewable energy. By replicating the electrical load that a power source would encounter in actual use, load banks help identify potential issues, validate system performance, and ensure compliance with industry standards. In essence, they provide a safe and controlled environment to test and verify the capabilities of critical power systems.
The first step in using a load bank is to connect it to the power source you want to test. This could be a diesel generator, a UPS system, or even a renewable energy source like a photovoltaic system. The load bank replaces the normal operating load, allowing the power source to operate as if it were connected to its intended equipment.
During the setup process, it is crucial to ensure that the load bank is properly connected and configured. This involves matching the voltage and current ratings of the load bank to those of the power source. Proper connection ensures accurate testing results and prevents potential damage to the equipment.
Once connected, the load bank simulates the electrical characteristics of the standard operating load. This means it presents the power source with a load that closely resembles what it would experience in real-world conditions. For example, if you are testing a generator that powers a data center, the load bank will mimic the electrical load created by the servers, cooling systems, and other equipment in the facility.
The load bank achieves this by converting electrical energy into heat. This process involves high-power resistors or resistive heating elements that dissipate the power output from the power source. The heat generated is then removed from the load bank using a forced air or water cooling system. This ensures that the load bank can handle large amounts of power without overheating or causing damage.
To understand how a load bank works, it is important to know its key components:
At the heart of a load bank are the resistors and heating elements. These components are responsible for converting electrical energy into heat. High-power resistors, such as grid resistors, are commonly used for this purpose. They are designed to handle large amounts of power and provide a consistent and reliable load for testing.
Since the load bank generates significant heat during operation, an effective cooling system is essential. Most load banks use forced air cooling, where fans direct cool air over the resistors to remove the heat. Some load banks, especially those used in high-power applications, may use water cooling systems for more efficient heat dissipation. Proper cooling ensures the load bank operates safely and efficiently.
Load banks are equipped with various instruments for metering and controlling the load. These instruments allow technicians to monitor the power source’s performance during testing. They provide real-time data on voltage, current, power factor, and other critical parameters. Additionally, control instruments enable technicians to adjust the load applied to the power source, allowing for precise testing and calibration.
Safety is a top priority when using load banks. Overload protection mechanisms are built into the load bank to prevent damage to the power source or the load bank itself. These mechanisms include circuit breakers, fuses, and temperature sensors that detect overheating or overloading conditions. If an abnormal condition is detected, the load bank will automatically shut down or reduce the load to protect the equipment.

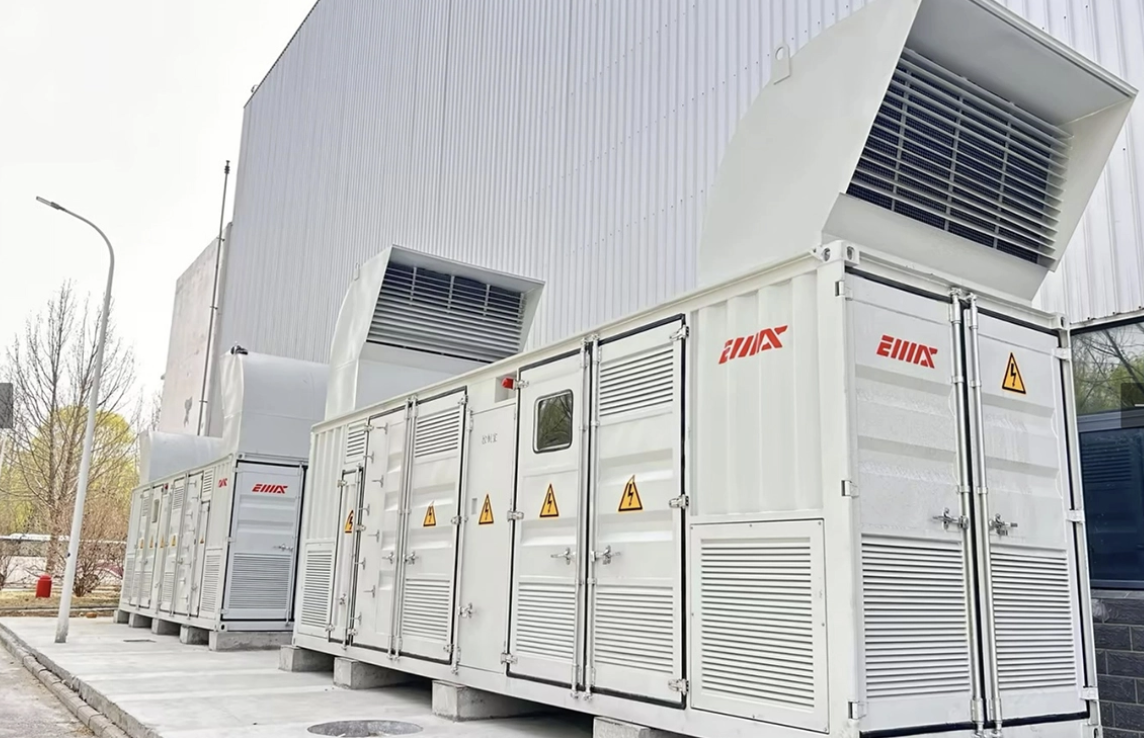

Resistive load banks are the most common type of load bank. They provide equivalent loading for both generators and prime movers. For each kilowatt (or horsepower) of load applied to the generator by the load bank, an equal amount of load is applied to the prime mover by the generator. This means that the load bank removes energy from the entire system, ensuring that all components are tested under realistic conditions.
Resistive load banks work by converting electrical energy into heat using high-power resistors. The heat generated is then dissipated through forced air or water cooling systems. These load banks are ideal for testing a wide range of power sources, including generators, UPS systems, and turbines.
Resistive load banks are used in various applications, such as:
Factory testing of turbines and diesel generator sets
Periodic exercising of standby engine generator sets
Battery and UPS system testing
Data center tests (electricity and air-conditioning)
Load optimization in prime power applications
Resistive load banks are versatile and can handle a wide range of power levels. They are relatively simple to use and maintain, making them a popular choice for many applications. However, they are limited to providing purely resistive loads and cannot simulate reactive loads, which are common in real-world power systems.
Inductive load banks are designed to simulate inductive (lagging power factor) loads. These loads are characterized by their ability to resist changes in current, causing the circuit current to lag behind the voltage. Inductive load banks are essential for testing power systems that include motors, transformers, and other inductive components.
Inductive loads create what is known as reactance in an AC circuit. Reactance is the opposition to alternating current caused by the buildup of electric or magnetic fields in the circuit element. In inductive loads, the reactance causes the current to lag behind the voltage, resulting in a lagging power factor.
Inductive load banks consist of iron-core reactive elements that create a lagging power factor load when used in conjunction with a resistive load bank. Typically, the inductive load is rated at 75% of the corresponding resistive load, resulting in a combined 0.8 power factor load. This combination allows for comprehensive testing of power systems, as it simulates real-life mixed commercial loads.
Inductive load banks are used in various applications, including:
Testing generators, voltage regulators, load tap changers, conductors, and switchgear
Evaluating the performance of power systems under inductive loads
Simulating real-life commercial loads consisting of lighting, heating, motors, and transformers
Capacitive load banks, also known as capacitor banks, create leading power factor loads. Unlike inductive loads, capacitive loads resist changes in voltage, causing the circuit current to lead the voltage. Capacitive load banks are essential for testing power systems that include electronic or non-linear loads, such as those found in telecommunications, computer, and UPS industries.
Capacitive reactance is the opposition to alternating current caused by the buildup of electric fields in the capacitor. Capacitive reactance results in a leading power factor, where the current leads the voltage.
Capacitive load banks supply reactive power to the system, improving the power factor and overall quality of supply. They are particularly useful in applications where the power system is predominantly inductive. By adding capacitive reactance, these load banks can bring the power factor closer to unity, reducing losses and improving efficiency.
Capacitive load banks are used in various applications, including:
Testing power systems with electronic or non-linear loads
Improving power factor in predominantly inductive systems
Simulating loads in telecommunications, computer, and UPS industries
Combined load banks offer the versatility of both resistive and reactive elements in a single unit. They can simulate a wide range of power factors, making them ideal for comprehensive testing of power systems. Combined load banks can consist of resistive, inductive, and capacitive elements, allowing for flexible and accurate load testing.
Combined load banks provide the ability to test power systems under various load conditions. They can simulate purely resistive loads, inductive loads, capacitive loads, or any combination of these. This versatility makes them suitable for testing complex power systems, such as those found in data centers, renewable energy installations, and industrial facilities.
Combined load banks are used in various applications, including:
Testing turbines, switchgear, rotary UPS, generators, and UPS systems
Integrated system testing of utility substation protection systems
Testing solar inverters to ensure proper shutdown during power outages
Simulating real-world power demands on critical power systems
Load banks are used in a wide range of practical applications to ensure the reliability and performance of power systems. Some common applications include:
Load banks are essential for factory testing of turbines and diesel generator sets. They allow manufacturers to validate the performance of these power sources under controlled conditions, ensuring they meet design specifications and can handle real-world demands.
Wet stacking is a common issue in diesel engines that operate at light loads for extended periods. Load banks can help reduce wet stacking by applying a sufficient load to the engine, ensuring it operates at an optimal temperature and preventing the buildup of unburned fuel and soot.
Regular exercise of standby generators is crucial to ensure they are ready to provide power during emergencies. Load banks provide a controlled load for periodic testing, helping to identify potential issues and maintain the generator’s reliability.
Load banks are used to test batteries and UPS systems, ensuring they can provide the required power during outages. By applying a controlled load, technicians can verify the performance and capacity of these critical backup systems.
Data centers rely on reliable power to maintain operations. Load banks are used to test the electrical and cooling systems, ensuring they can handle the power demands of the servers and other equipment. This helps prevent costly downtime and data loss.
Load banks can help optimize the load on prime power applications, ensuring efficient operation and reducing carbon buildup on generator piston rings. This improves the overall performance and lifespan of the power system.
The use of load banks offers several benefits, making them an essential tool for maintaining and testing power systems. Some key benefits include:
Load banks provide a controlled environment to test emergency power sources such as generators and UPS systems. This ensures they can provide reliable power during outages, minimizing downtime and financial losses.
By applying a controlled load, load banks can help identify potential issues with power systems. This allows technicians to correct design flaws and equipment defects before they cause critical failures.
Many industries have strict standards and regulations for power system testing and maintenance. Load banks help ensure compliance with these requirements, providing documentation and validation of system performance.
Regular load bank testing helps identify potential issues early, allowing for timely maintenance and repairs. This minimizes the risk of unexpected downtime and the associated financial losses.
The frequency of load bank testing depends on the specific application and industry standards. For critical power systems such as standby generators, periodic testing is recommended at least once a year. However, more frequent testing may be necessary for systems with higher usage or critical applications.
Yes, load banks can be used for renewable energy sources such as wind turbines. They are particularly useful for shedding excess power that the electrical grid cannot absorb, ensuring the system operates within safe limits.
Safety is paramount when using load banks. Some key considerations include:
Proper connection and configuration of the load bank to the power source
Ensuring the load bank is rated for the power source’s voltage and current
Monitoring temperature and other critical parameters during testing
Using appropriate personal protective equipment (PPE) when working with high-voltage systems
Choosing the right load bank depends on the specific requirements of your application. Factors to consider include:
The type of power source being tested (generator, UPS, battery, etc.)
The required load characteristics (resistive, inductive, capacitive, or combined)
The power rating and voltage requirements
Portability and installation options (stationary, portable, trailer-mounted, etc.)
Load banks are indispensable tools for ensuring the reliability and performance of power systems. By simulating real-world electrical loads, they provide a controlled environment for testing and validation. Understanding how a load bank works is crucial for anyone involved in the maintenance and testing of power systems. Whether you are testing generators, UPS systems, or renewable energy sources, load banks offer a versatile and reliable solution.
Regular load bank testing helps minimize downtime, detect potential issues, and ensure compliance with industry standards. By investing in load bank testing, you can safeguard your operations and maintain the reliability of your critical power systems. For high-quality load bank solutions and expert support, trust Guangdong Emax Electrical Co., Ltd., a leading provider of advanced electrical testing equipment.
